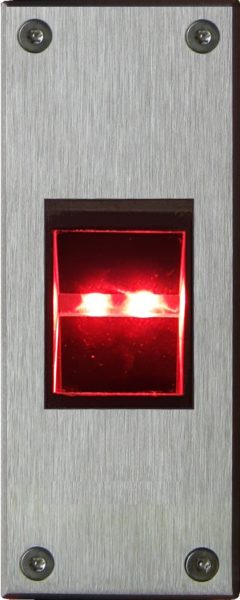

EASY-KEY enable users to get access to a restricted area using their fingerprint as a pin code. The device is made of high-tech optical sensor stored in a plate steel.
EASY-KEY system is able to interface and work in combination with other verification systems like a keypad or electronic keys.
EASY-KEY is compatible with most of the electronic locks.
It is very easy to configure: for enable or disable new user you need only a finger. So, you do not need to wait for a technician to reconfigure.
Typical applications:
- Automatic access
- Data center
- Locks
- Control rooms
Size
Standard equipment
- Recessed mounting in 503 housing type
- Satin-finish stainless steel plate 115x80mm
- Energy supply 9-20V dc 100mA max
- Temperature -20°C to +50°C
- Opto-isolated input
- RS-485 serial for multi-points connection
- IP64 protection (for indoor and outdoor application)
- 1 administrator and up to 150 users
